For Sr/Yb clock systems see:
Injection-Locked Amplifiers: 800mW at 461nm, >200mW at 399nm
Linear Cavity SHG systems: 1W at 461nm, 399nm

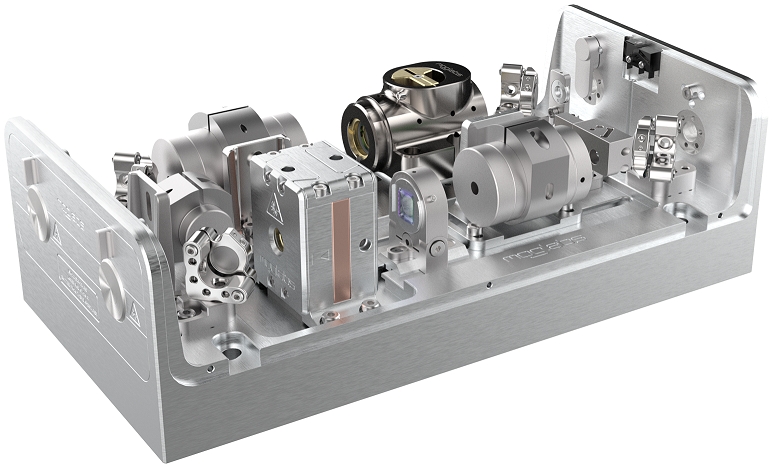

The MOGLabs MSA series of amplified lasers provides a compact, robust, stable system with integrated seed laser and tapered amplifier diode to provide up to 5W of optical output.
The design features wire-cut flexure mounts for the input and output coupling lenses, which provide outstanding passive stability as well as easy user-replacement of the TA chip after reaching end-of-life.
A wide range of isolators can be used, including compact isolators with 4mm aperture, through to double-stage isolators with 5mm aperture.
The MSA seeded amplifier uses the unique inherently self-aligning MOGLabs cateye laser with its very low frequency drift and industry-leading low passive linewidth.
MSA Datasheet
Request a quote
Request support
Wavelength 650nm – 1140nm
Output power up to 5W, depending on wavelength
High stability wire-cut flexure alignment with simple optimisation procedure
User-replaceable TA diode
Astigmatic correction lens
Features
Multiple stage optical isolation
Single-mode output fibre coupling
Dual amplified output beam option (free-space plus fibre-coupled)
Secondary free-space or fibre-coupled seed pickoff (e.g. for locking, monitoring of seed)
Enhanced ASE suppression using our proprietary ultra-narrow 0.2nm bandpass filter technology
Integrated beam-shaping to reduce profile ellipticity
Compatible with MOGLabs LASRACK
