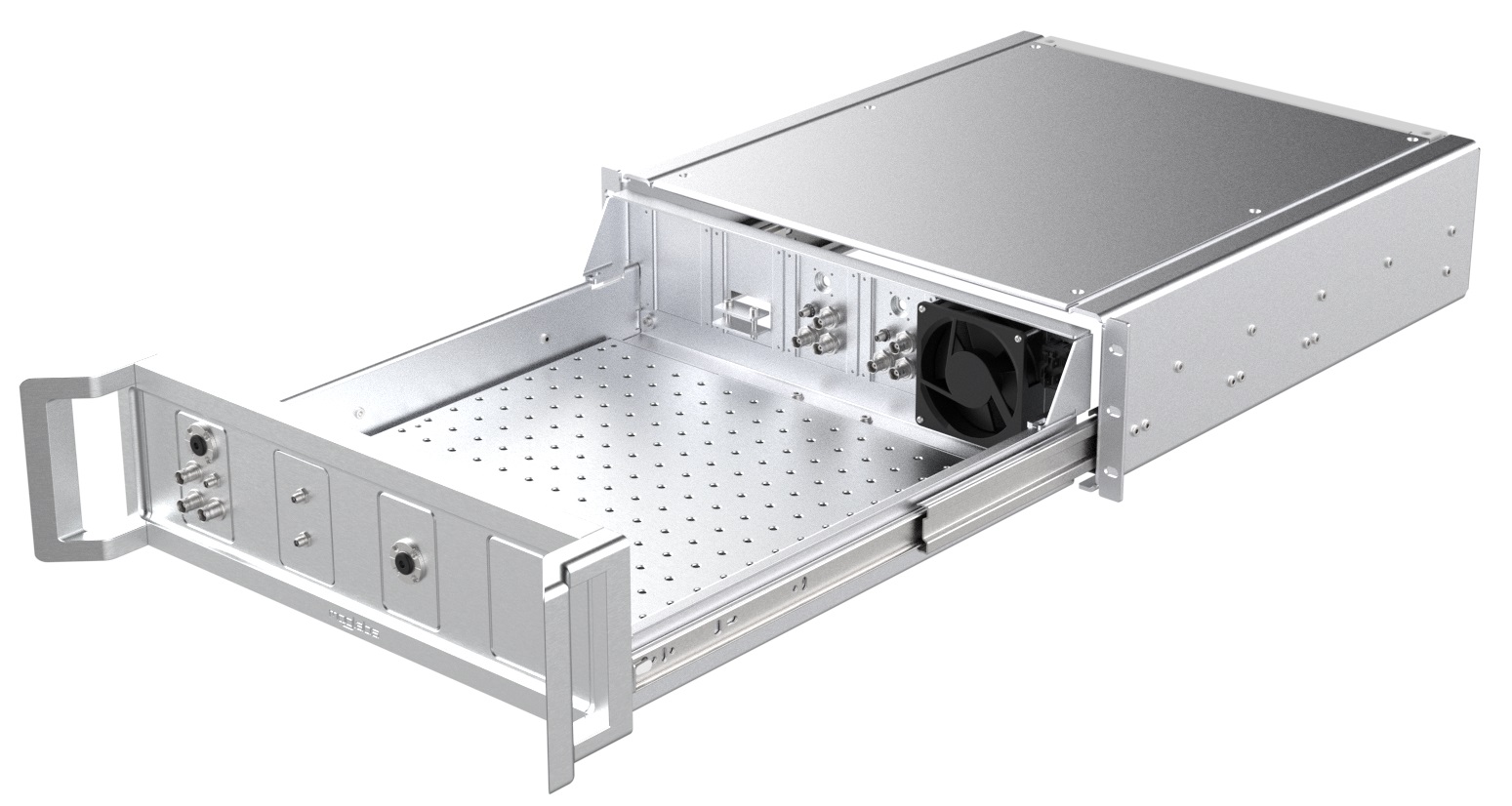

The MOGLabs laser rack mounting kit allows convenient mounting of many MOGLabs lasers in a standard 19" wide rack.
LASRACK Datasheet
Request a quote
Request a quote
19" wide profile
Heavy duty steel ball bearing runners
Configurable front and rear feed throughs
Fan: 110/240 V, 7 W, 0.46/0.58 m3/min at 50/60 Hz
Outside dimension: WxDxH = 446x490x130 mm
Optical breadboard: WxDxH = 393x416x6.35mm, M6 tapped on 25mm spacing
Inside height: 108mm max
