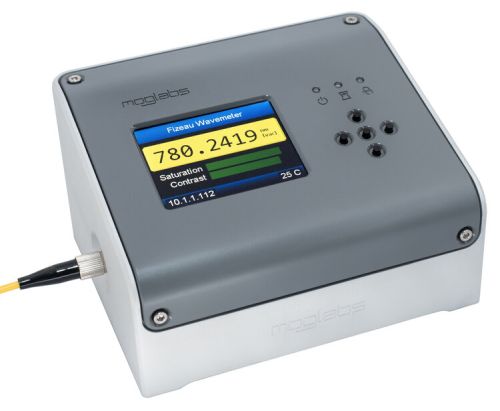

A compact wavelength measurement device based on Fizeau interferometers, providing reliably accurate measurements over a wide range of wavelengths (350-1120nm) without recalibration, and up to 1280nm on request. The measurement and calculation is performed on the device, with the result displayed on the screen, removing the need for a host computer. Turn it on, and know your wavelength in less than 2 seconds.
The small form factor makes it an easy-to-use analysis tool, and can be powered either through USB or from a DC plugpack or external battery. An analogue output can be used for wavelength monitoring or laser stabilisation via a built-in PID controller.
Ethernet and USB interfaces allow immediate integration into existing control systems (LabVIEW, MATLAB and python drivers provided) using simple text-based commands. A fully-featured software suite is provided, including long-term measurement and modehop-free scan-range measurement. A simple one-button recalibration procedure using an external reference source compensates for any long-term drift. External triggering and wide bandwidth mode allow use with pulsed lasers.

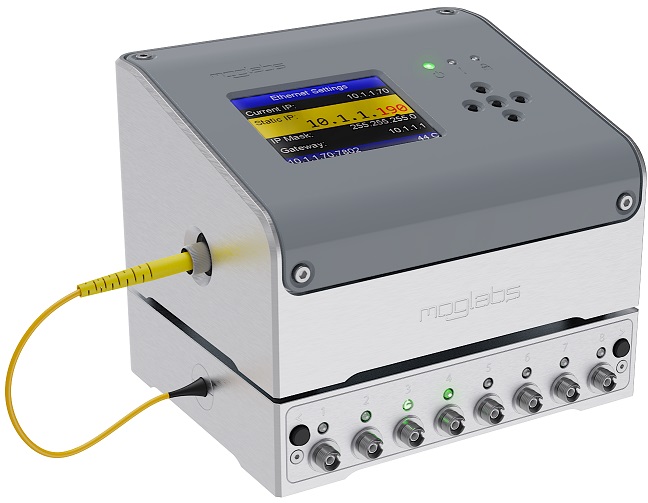

Compact two, four, and eight-channel fibre switchers are available, using MEMS technology for essentially infinite lifetime and rapid switching. Each channel has its own 16-bit DAC for laser frequency control.
Contact MOGLabs to discuss OEM integration opportunities.
FZW Datasheet
FZW Software
Request a quote
Request support
Operates over 370 - 1120nm without recalibration
3-sigma uncertainty of 600MHz; typical measurement accuracy < 200MHz
Built-in PID for laser frequency stabilisation
Runs from USB or 5V DC jack, no computer required!
Simple computer interface over Ethernet/USB
2x, 4x and 8x fibre switchers available
